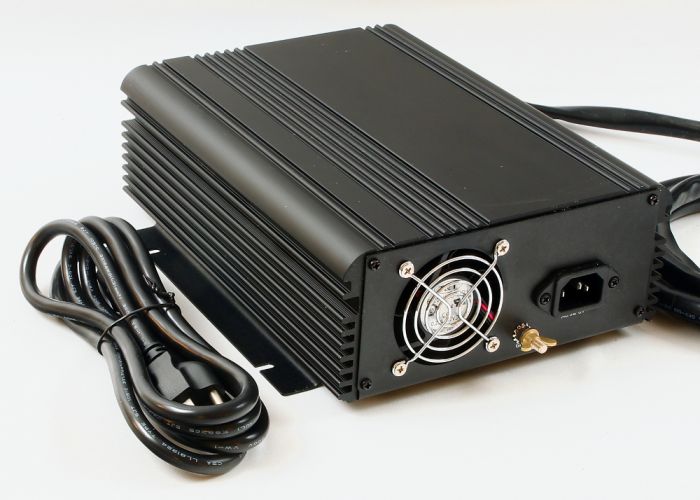

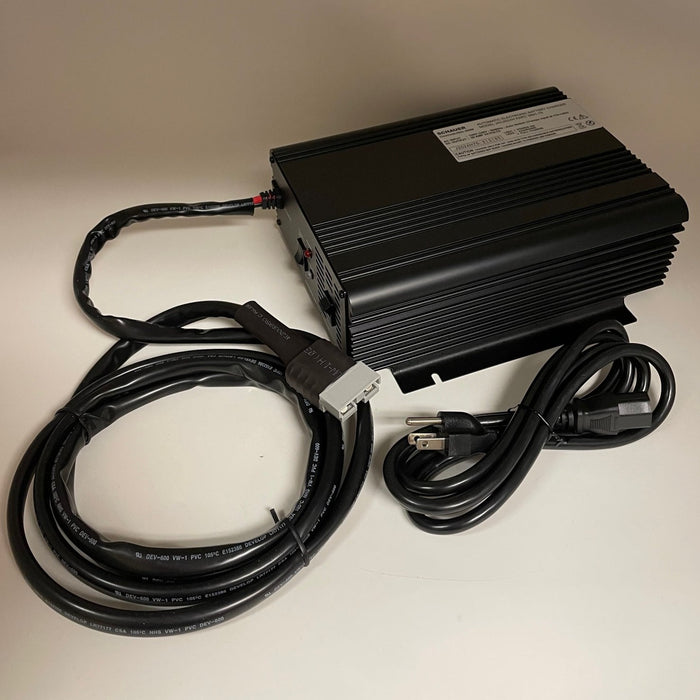

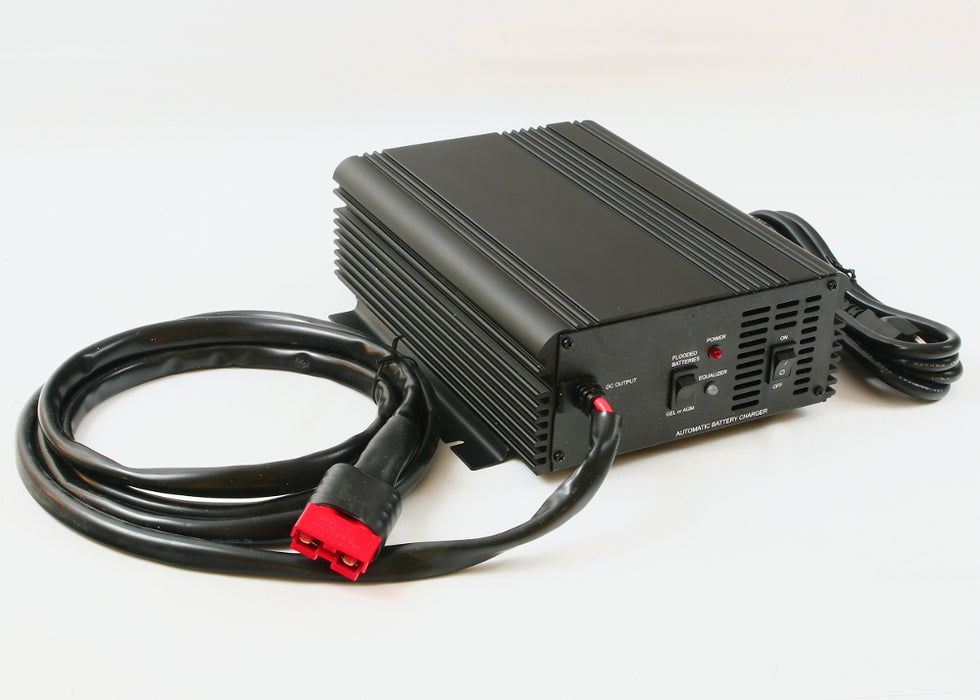

Battery Charger, 24v 12a Red or Grey Connector
- Description
CHARGER, 24V 12A W/SB50 RED CONNECTOR (replaced Lester 1836083W)
The 24 volt 20 amp fully automatic multi-mode battery charger designed for charging 24 volt systems found in electric vehicles, industrial equipment, scissor lifts, aerial platforms, fork trucks, pallet movers and golf carts. The charger is equipped with a quick-disconnect SB50 plug to allow the use of many different plug harnesses to make this charger compatible with many 24 volt applications. Select your desired harness above at no extra cost.
*Important, this can only be used as an offboard charger*
Features
- Fully Automatic 3-Stage charger can be left on the battery in maintenance / float mode
- Selector switch for charging "Flooded Batteries" and "GEL or AGM" batteries
- Continuous - 100% Duty Cycle
- Low Voltage Start - Will start charging deeply discharged batteries with low terminal voltage
LED Indicators
- RED - AC Power On
- YELLOW - Charging
- GREEN - Float/Maintenance Mode
Safety Features
- Reverse Polarity Protected
- Short Circuit Protected
- On/Off Switch
Cyclic Voltage
| Flooded | 2.47 Volts / Cell |
|---|---|
| Gel & AGM | 2.4 Volts / Cell |
Common Applications (36VDC systems)
- Electric Golf Carts
- Scissor Lifts
- Arial Platforms
- Electric Vehicle / Transportation
- Electric Pallet Movers
- Electric Fork Trucks
| Charger Mode | Automatic |
|---|---|
| Input Voltage | 120 Volts, 240 Volts |
| Output Voltage | 24 Volt |
| Amp Output | 20 Amp |
| Charger Type | On-Board |
| Charger Application | Golf Cart, Industrial, Wheelchair / Mobility |
| Dimensions | 10" x 7.5" x 3" |
| Warranty | 2 Year, Limited |
| Charging Technology | Electronic |
|---|---|
| DC Output | 24V / 12A |
| DC Battery Connector Type | 50A Red |
| AC Input | 115V / 11A |
| AC Plug | 5-15P Three Prong |
| Timer | Auto |
Replaces
1073638 86284030 702441 1702440 56205983 56205983 56206980 56206980 957722
